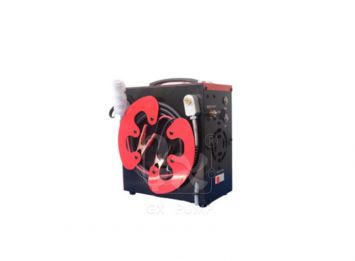

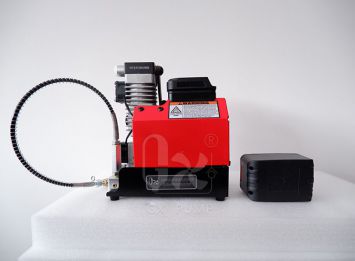

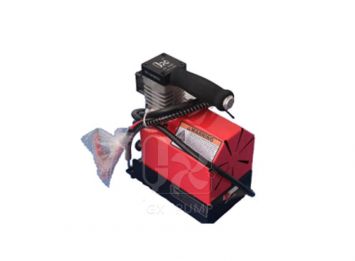

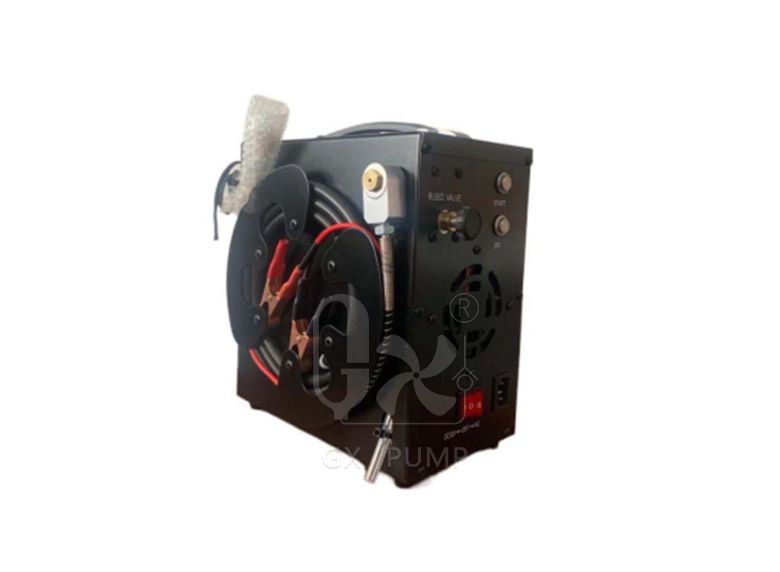

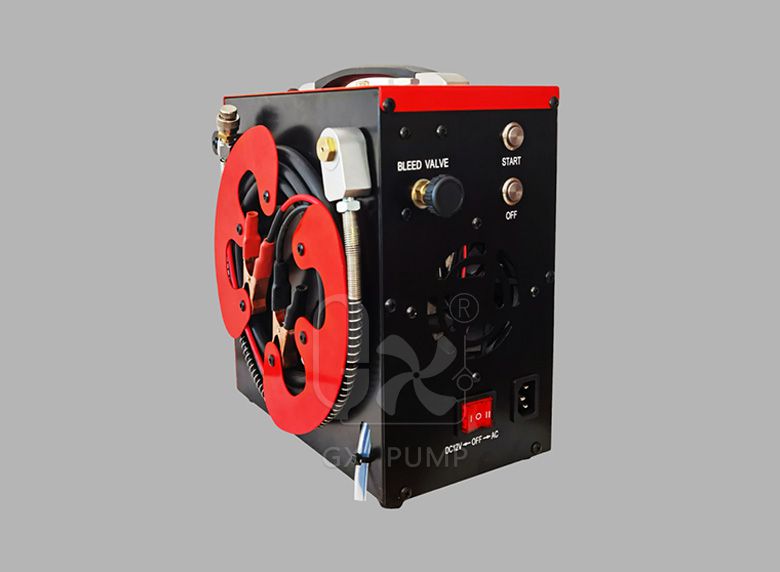

GX 3 stage On-board Built-in power supply high pressure On-board air pcp compressor

Technical Details:

Item: GX-E-CS3-I;

Power: 250W;

Working pressure: AC 220V or 110V or DC12V-15V;

Motor speed: 2700r/min;

Air output: 11 L/min;

Dimension: 24cm x 22cm x 25.6cm;

Weight: 10.2KGS;

Maximum working pressure: 320 bars;

Maximum current: 25A

Work volume: 72DB

Updraft velocity: 0.5 liter container:

from 200 BARS to 300 BARS needs 6-7mins;

from 0 BARS to 300 BARS needs 18-20mins.

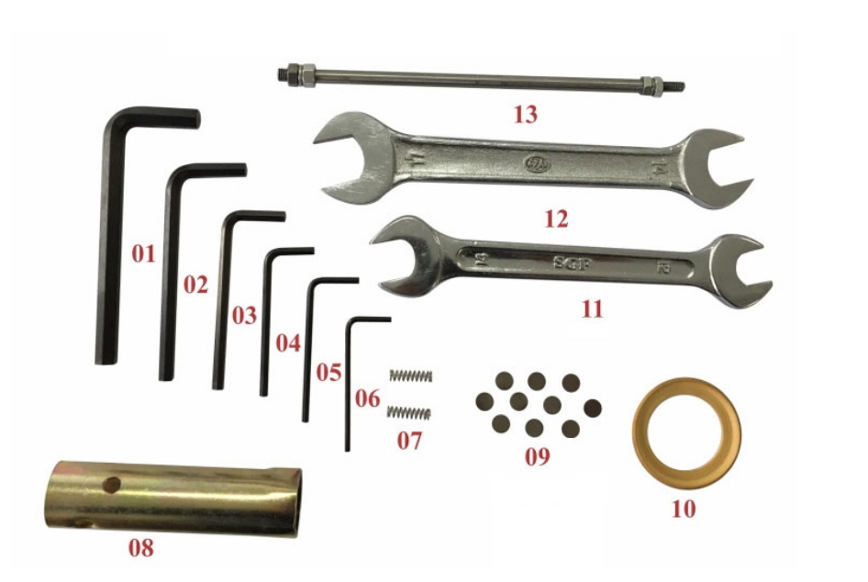

ACCESSORY LIST

7mm Allen wrench......1PCS

5mm Allen wrench......1PCS

4mm Allen wrench......1PCS

3mm Allen wrench......1PCS

2.5mm Allen wrench......1PCS

2mm Allen wrench......1PCS

Spring......2PCS

19mm socket spanner......1PCS

First stage piston ring......1PCS

Burst disc......10PCS

12-14 wrench......1PCS

14-17 wrench......1PCS

Pull rod......1PCS
